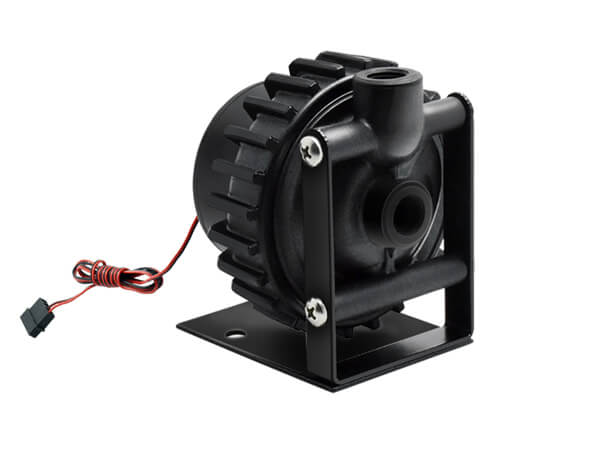

12V/24V Computer Cooling Water Pump P6045
Published:2018-09-06
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump |
■Product application
The computer system cooling
PC and LED radiator
Other cyclic refrigeration equipment
best pc water cooling pump
■Product information
Ambient temperature:-25 to +70℃
Medium temperature:0 to +70℃
Medium:clear water
Using place:Indoor
Weight:0.58kg
Protection level:IP55
Insulation level:E
Service life:20000 hours
■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB（A） |
12 | 8-20 | 1.7 | 3.7 | 11 | 21 | ≤30 |
■ FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T，L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Some pumps met FDA, UL.
pc water cooling kit
■ Specifications
Type | P6045 |
Rated Voltage | 12V / 24V |
Voltage Range | 8-20V / 12-30V |
Max Flow | 13L/min, 13L/min |
Max Lift | 4.5m / 4.5m |
Max Noise | 30dB / 30dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | 0 ~ +70℃ |
Ambient Temperature | -25 ~ +70℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water |
Protection Level | IP55 |
Using Place | Indoor / Outdoor |
Power Consumption | 18W / 18W |
Service Life | 20000 hours |
OD of inlet | 1/4 inch |
OD of Outlet | 1/4 inch |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
Material | XYRON PPE |
Customized functions | 1, Dry-running protection 2, Submersible 3, PWM speed adjustable 4, FG signal output 5, Locked-rotor protection |
Remarks | Not self-priming |
