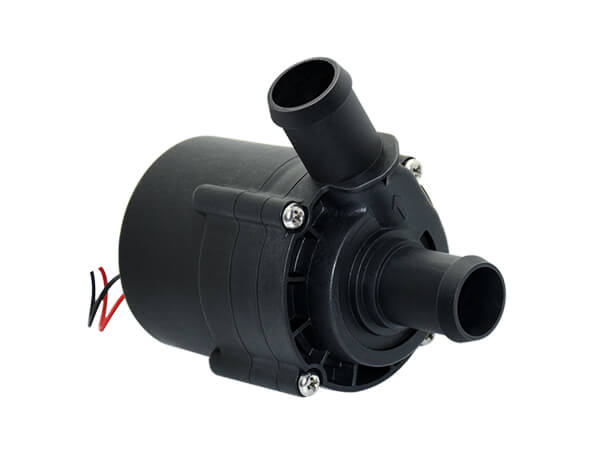

12V/24V Intelligent Toilet Booster Pump P6068
Published:2018-09-06
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump |

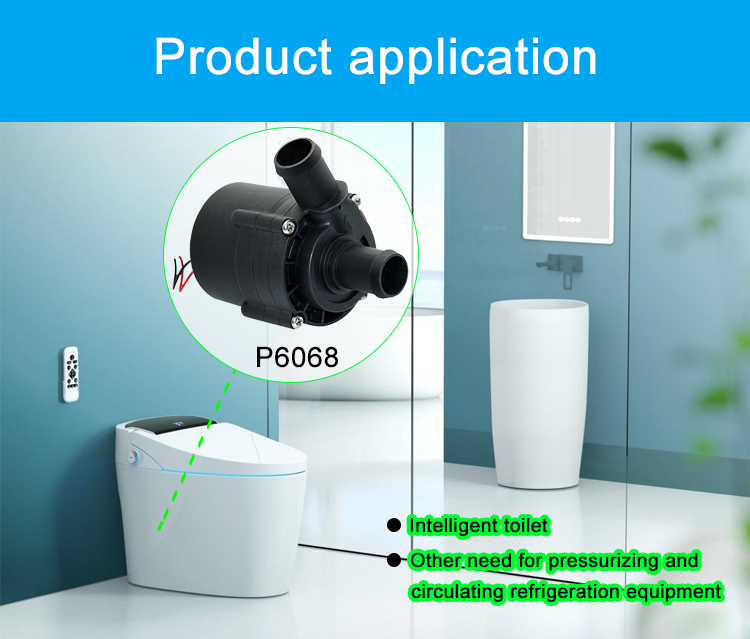

■Product application
Intelligent toilet without water tan
Other need for pressurizing and circulating refrigeration equipment
■Product information
No pollution,Energy conservation and environmental protection
Small volume,Easy to install
DC low voltage,No leakage,Imports of raw materials,High temperature resistance

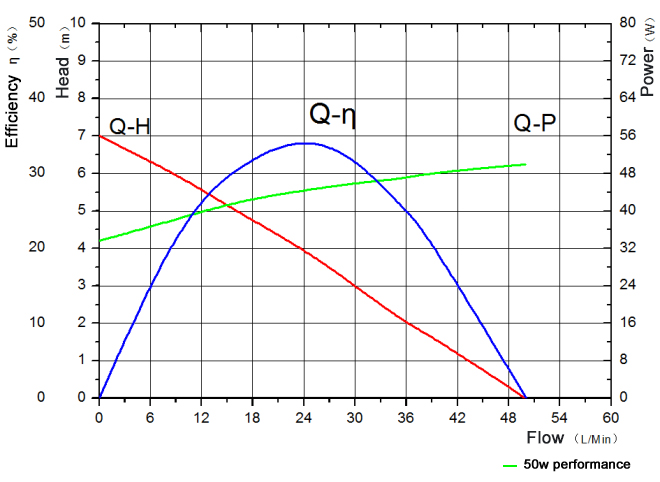

■Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB（A） |
12 | 8-18 | 4.5 | 7 | 50 | 54 | ≤45 |
24 | 12-29 | 2.1 | 7 | 50 | 50 | ≤45 |
■ FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T，L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Some pumps met FDA, UL.
■ Specifications
Type | P6068 |
Rated Voltage | 12V / 24V |
Voltage Range | 8-18 / 12-29V |

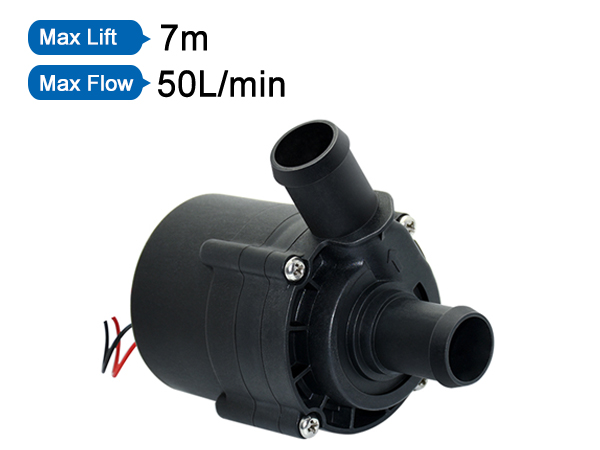

Max Flow | 50L/min / 50L/min |
Max Lift | 7m / 7m |
Max Noise | 45dB / 45dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | 0 ~ +50℃ |
Ambient Temperature | -25 ~ +50℃ |
Pump Theory | Centrifugal Pump |
Medium | Hot or cold water |
Protection Level | IP22 |
Using Place | Indoor |
Power Consumption | 54W / 50W |
Service Life | 20000 hours |

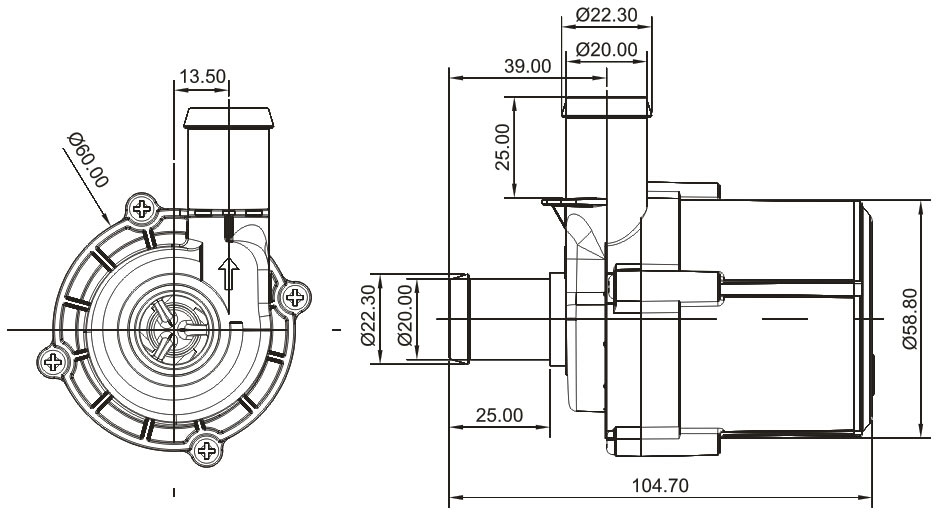

OD of inlet | 20mm |
OD of Outlet | 20mm |
Power supply | Battery / DC Electricity / Solar panel |
Structure | Single-stage |
Material | XYRON PPE |
Customized functions | 1, Dry-running protection 2, Submersible 3, PWM speed adjustable 4, FG signal output 5, Locked-rotor protection |
Remarks | Not self-priming |
