12v Automobile water pump P6211
Published:2024-06-29
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump Obtain samples / Obtain parameters |
■ Product application
Electric Control Cooling Cycle for New Energy Vehicle Motors
Cooling cycle of new energy vehicle batteries
New energy vehicle heating cycle
■ Product information
Ambient temperature:-40 to +125℃
Medium temperature:-40 to +120℃
Medium:Clear water，antifreeze
Weight:0.43Kg
Protection level:IP68
Insulation level:H
Service life:20000 hours
Inlet and outlet:20mm
■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB（A） |
12 | 8-18 | 4.6 | 9 | 38 | 60 | ≤40 |
■ FAQ
●How long is your delivery time?
Sample order is 7~10 days.
Bulk order is 15~20 days.
If there is pumps in stock, it is 2 days.
●How long is your warranty of pump?
Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.
●What’s the payment method?
Paypal or T/T，L/C .
●What certificates have your pumps passed?
All our products have passed CE, RoHS, Reach.
Some pumps met FDA, UL.
■ Specifications
Type | P6211 |
Rated Voltage | 12V |
Voltage Range | 8-18V |
Max Flow | 38L/min |
Max Lift | 9m |
Max Noise | 40dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | -40 ~ +120℃ |
Ambient Temperature | -40 ~ +125℃ |
Pump Theory | Centrifugal Pump |
Medium | Water, antifreeze |
Protection Level | IP68 |
Using Place | Indoor |
Power Consumption | 60W |
Service Life | 20000 hours |
OD of inlet | ∅20mm |
OD of Outlet | ∅20mm |

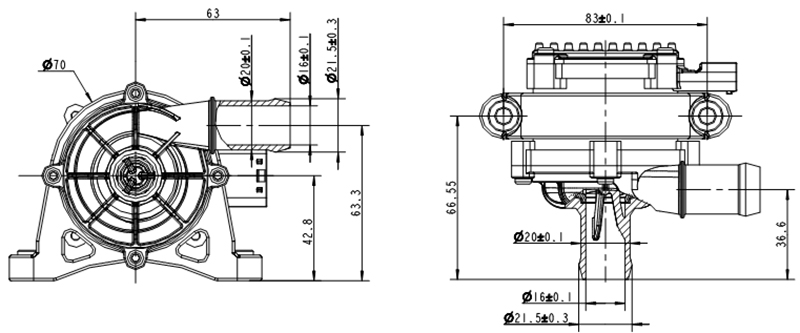

Dimension | 73.3*114*105mm |
Power supply | DC electricity /Battery / Solar panel |
Structure | Single-stage |
Material | PPS |
Customized functions | 1, Dry-running protection 2, PWM speed adjustable 3,FG signal output 4, Locked-rotor protection |
Remarks | Not self-priming |
