In the pursuit of high-quality sleep, water heating mattresses have gradually become a new favorite in bedrooms due to their advantages of "constant temperature heating" and "no electromagnetic radiation". However, the noise problem of traditional water heating mattresses has always plagued consumers, even becoming the main pain point affecting the sleep experience. Today, with the breakthrough of silent water pump technology, water heating mattresses are ushering in a "silent revolution"—through the upgrade of core components, achieving ultra-quiet operation of ≤30dB, allowing warmth and quietness to coexist perfectly.

I. Noise Pain Points and Technical Bottlenecks of Traditional Water Heating Mattresses

Traditional water heating mattresses mostly use brushed motor water pumps, whose operating noise is usually between 45-55dB, equivalent to the level of office background noise. This noise mainly comes from three aspects: first, the electromagnetic noise generated by the friction of carbon brushes in brushed motors; second, the mechanical noise generated by the high-speed rotation of the impeller and water flow impact; third, the low-frequency noise generated by the resonance between the water pump and the internal structure of the mattress. Especially in the dead of night, this continuous "buzzing" sound will significantly affect sleep quality, leading to difficulties in falling asleep and shallow sleep.

Technical Bottleneck Analysis:

To reduce costs, traditional water pumps commonly use a combination of plastic impellers and metal shafts. The dynamic balance accuracy of the impellers is insufficient, prone to vibration noise when the rotational speed reaches above 2000rpm. At the same time, the pump body structure design lacks noise reduction optimization, and the noise is transmitted to the mattress surface through the water pipe, further amplifying the noise impact. Data shows that 68% of consumers reduce the frequency of using traditional water heating mattresses due to noise problems, which has become a key factor restricting industry development.

II. Core Technologies of Silent Water Pumps to Achieve Below 30dB Operation

1. Revolutionary Application of Brushless DC Motors

Silent water pumps use brushless DC motors instead of traditional brushed motors, completely eliminating the electromagnetic noise generated by carbon brush friction. Brushless motors control the current direction through an electronic commutator, reducing the noise value by 15-20dB during operation. At the same time, combined with FOC vector control technology, the motor speed control accuracy can reach ±10rpm. While ensuring the efficiency of water circulation, the speed is controlled in the low-noise range of 1500-1800rpm, reducing noise generation from the source.

2. Fluid Mechanics and Structural Noise Reduction Design

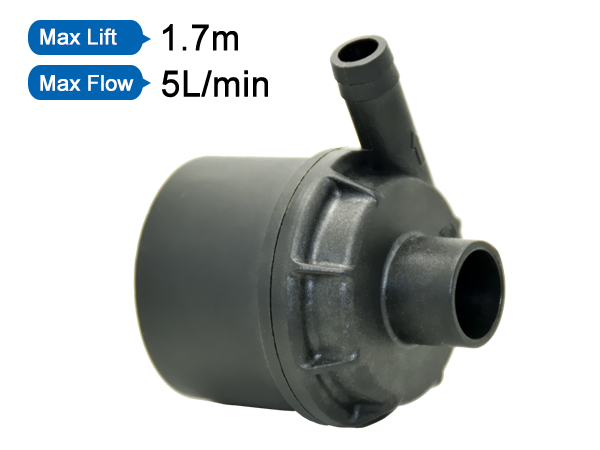

In terms of impeller design, silent water pumps adopt bionic spiral impellers. The blade angles are optimized through CFD (Computational Fluid Dynamics) simulation, reducing the turbulence degree of water flow through the impeller by 30% and minimizing water flow impact noise. The interior of the pump body is equipped with multi-stage noise reduction partitions, which use a labyrinth structure to reflect and absorb noise multiple times. Combined with the soundproof cotton wrapping layer, a triple noise reduction system of "sound insulation - sound absorption - noise elimination" is formed.Shenpeng P4002, rated power 3W, noise level less than 30dB, equivalent to the level of a soft whisper.

3. Miniaturization and Low Vibration Technology

Silent water pumps adopt an integrated miniature pump body design, with a diameter of only 30mm and a weight of less than 100g, reducing the volume by 40% compared to traditional water pumps. This design not only facilitates flexible layout inside the mattress but also reduces resonance noise by minimizing the contact area between the pump body and the mattress. At the same time, the water pump uses a combination of ceramic bearings and graphite bushings inside, with a friction coefficient as low as 0.002. Combined with an impeller with a dynamic balance accuracy of G2.5 level, the amplitude during operation is controlled within 0.05mm, eliminating vibration noise from the mechanical structure.

III. Comprehensive Improvement of Water Heating Mattress Experience with Below 30dB Operation

1. Subversive Improvement of Sleep Quality

The operating noise of ≤30dB is close to the background noise level in the natural environment (20-30dB is the sound of rustling leaves), and the human body can hardly perceive the operation of the water pump. A sleep research institution's comparative test shows that using a water heating mattress equipped with a silent water pump, the averageTime to fall asleep of users is shortened by 27%, the proportion of deep sleep time is increased by 19%, and the number ofNumber of flips during sleep is reduced by 33%. This "invisible" silent experience allows users to enjoy deep sleep in a warm environment, truly achieving the sleep need of "warmth without disturbance".

2. Double Breakthrough in Product Performance and Reliability

The brushless motor design of silent water pumps gives them a service life of more than 30,000 hours. Calculated based on 8 hours of daily use, they can be used continuously for more than 10 years, which is a significant improvement compared to the 2-3 year life of traditional brushed water pumps. At the same time, due to the elimination of the carbon brush structure, the motor does not require regular maintenance, reducing the user's maintenance costs. In terms of energy consumption, silent water pumps adopt efficient and energy-saving designs, with a power of only 1.5-2.5W, and the power consumption for 24-hour continuous operation is less than 0.06 kWh, balancing multiple advantages of silence, energy conservation, and long life.

3. Deep Integration of Smart Home Scenarios

The low noise characteristic of silent water pumps creates conditions for the integration of water heating mattresses with smart home systems. Through built-in flow sensors and temperature sensors, the water pump canlinkage with smart thermostats, automatically adjusting the water circulation speed according to the indoor temperature to further optimize noise performance while maintaining constant temperature. Some high-end models also support WiFi connection, allowing users to remotely control the operating status of the water pump and view energy consumption data through a mobile phone APP, achieving a dual experience upgrade of "silence + intelligence".

IV. Application Prospects and Industry Impact of Silent Water Pumps in the Water Heating Mattress Field

With the continuous improvement of consumers' requirements for the sleep environment, silence has become an important direction for the upgrading of water heating mattresses. Market research data shows that in 2024, the sales of water heating mattresses equipped with silent water pumps increased by 127% year-on-year, and the penetration rate in the high-end market has reached 45%. It is expected that by 2025, this proportion will exceed 60%, and silent water pumps will become the standard component of water heating mattresses.

For manufacturers, the adoption of silent water pumps can not only significantly enhance product competitiveness but also open up new application scenarios. For example, in noise-sensitive places such as hotel rooms and elderly care institutions, silent water heating mattresses are becoming a new procurement hotspot. As the person in charge of a well-known home appliance brand said: "The maturity of silent water pump technology has transformed water heating mattresses from 'functional products' to 'experience-oriented products', opening up new growth space for the industry."

Conclusion: Silent Technology Drives Industry Upgrading and Redefines the Warm Experience

From the "buzzing" of traditional brushed water pumps to the "quiet operation" of silent water pumps, the silent revolution of water heating mattresses is not only a technological upgrade but also a deep concern for users' sleep experience. When silent operation below 30dB becomes possible, water heating mattresses truly realize the product concept of "warmth without disturbance", creating a sleep environment that combines comfort and quietness for consumers. With the continuous improvement of silent water pump technology, we have reason to believe that in the future, water heating mattresses will play a more important role in smart home scenarios, redefining people's experience and imagination of "warmth" based on silence.
