  • 12V BLDC Car Cooling Pump P5012

12V BLDC Car Cooling Pump P5012

Volt: 12V
Head: 3-9m
Noise: ≤35dB(A)
Speed control ways:
Protection level:
Function:
Medium temperature: -40-125°C






  Remarks:

  - We can offer OEM/ODM service.

  - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com


  - Our Facebook is:Shenpeng Pump

  Facebook.png                                        未标题-2-1.jpg




12v engine cooling pump

■ Product application

Heating vertilation air conditioning

Auto turbocharger water cooling cycle

New energy vehicle cooling cycle



■ Product information

    Ambient temperature:-40 to +125℃

    Medium temperature:-40 to +120℃

    Medium:Clear water,antifreeze

    Weight:0.38Kg

    Protection level:IP67

    Insulation level:H

    Service life:20000 hours

    Inlet and outlet:20mm

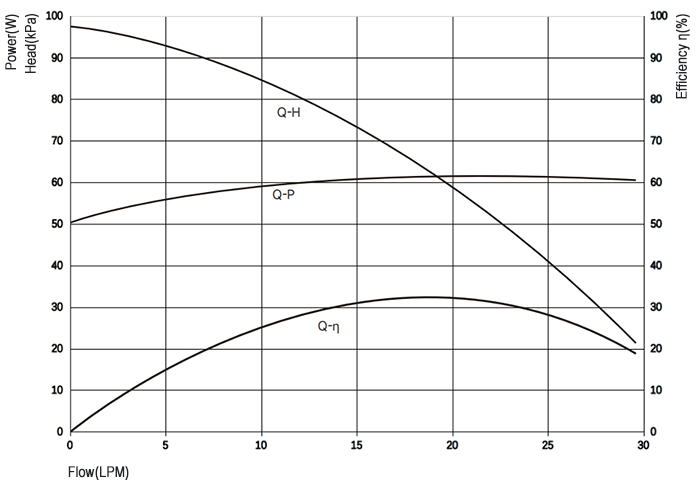

■ Curve

12v engine cooling pump.jpg


12v engine cooling pump.jpg


Rated Voltage

Voltage Range

Rated Current

Max Head

Max Flow

Rated Poweer

Max Noise

V

V

A

m

L/min

W

dB(A

12

6-14

1.8

4.5

25

22

40



12v engine cooling pump.jpg


■ FAQ

  How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
     If there is pumps in stock, it is 2 days.



   How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.



   What’s the payment method?
     Paypal or T/T,L/C .



   What certificates have your pumps passed?
     All our products have passed CE, RoHS, Reach.
     Some pumps met FDA, UL.


 Specifications

Type

P5012

Rated Voltage

12V

Voltage Range

6-14V

Max Flow

25L/min

Max Lift

4.5m

Max Noise

40dB

Motor Type

DC Brushless Motor

Food Grade(Y/N)

N

Liquid Temperature

-40 ~ +125

Ambient Temperature

-40 ~ +120

Pump Theory

Centrifugal Pump

Medium

Water, antifreeze

Protection Level

IP67

Using Place

Vehicle

Power Consumption

22

Service Life

20000 hours

OD of inlet

17mm

OD of Outlet

17mm

Dimension

90*111*52mm

Power supply

Battery / Electric / Solar panel

Structure

Single-stage

Material

PPS

Customized functions

1, Dry-running protection

2, PWM speed adjustable

3, FG signal output

4, Locked-rotor protection

Remarks

Not self-priming



12v coolant circulation pump,12 volt coolant pump automotive,12 volt inline coolant pump,high voltage coolant pump,coolant circulation pump mercedes,automotive electric coolant pump
