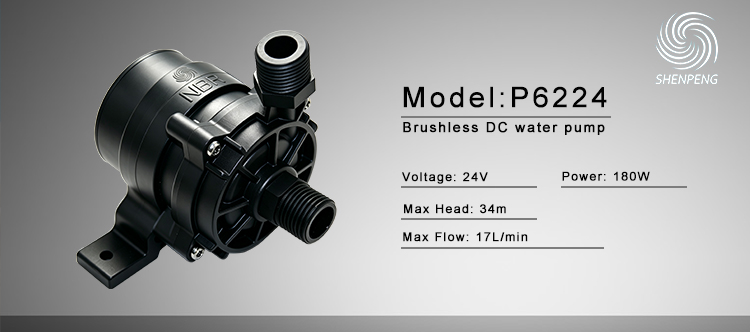

EV charger cables cooling pump P6224
Volt: 24V
Head: 0-33m
Noise: ≤55dB(A)
Speed control ways:
Protection level: IP67
Function:
Medium temperature:
Remarks: - We can offer OEM/ODM service. - If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com - Our Facebook is：Shenpeng Pump Obtain samples / Obtain parameters |
| ■ Product application |
| Liquid-cooled EV Charger |
| Other equipment requiring pressurized circulation |
| ■ Product information |
| Ambient temperature: -40 to 85℃ |
| Medium temperature: -40 to 55℃ |
| Medium: Clear water,antifreeze |
| Weight: 0.78Kg |
| Protection level: IP67 |
| Insulation level: F |
| Service life:20000 hours |
| Inlet and outlet: G1/2 |

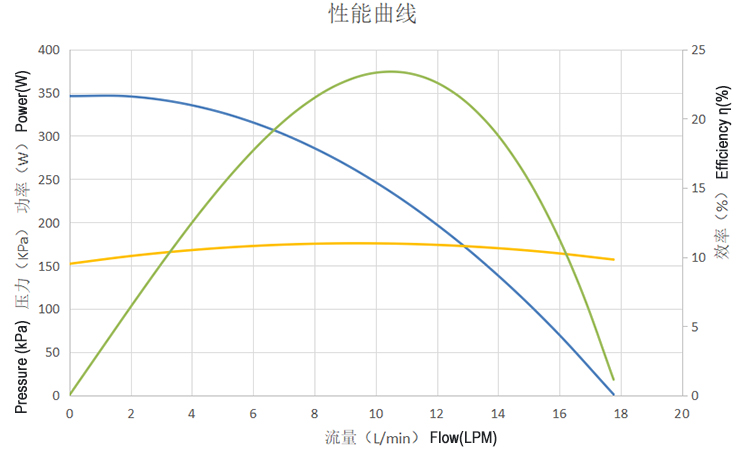

■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB（A） |
24 | 18-32 | 7.5 | 34 | 17 | 180 | ≤55 |
| ■ FAQ |
| ●How long is your delivery time? |
| - Sample order is 7~10 days. |
| - Bulk order is 15~20 days. |
| - If there is pumps in stock, it is 2 days. |
| ●How long is your warranty of pump? |
| - Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage. |
| ●What’s the payment method? |
| - Paypal or T/T，L/C . |
| ●What certificates have your pumps passed? |
| - All our products have passed CE, RoHS, Reach. |
| - Some pumps met FDA, UL. |
■ Specifications
Type | P6224 |
Rated Voltage | 24V |
Voltage Range | 18-32V |
Max Flow | 17L/min |
Max Lift | 34m |
Max Noise | 55dB |
Motor Type | DC Brushless Motor |
Food Grade(Y/N) | N |
Liquid Temperature | -40-55℃ |
Ambient Temperature | -40-85℃ |
Pump Theory | Centrifugal Pump |
Medium | Water, antifreeze |
Protection Level | IP67 |
Using Place | Liquid-cooled EV Charger |
Power Consumption | 180W |
Service Life | 20000 hours |
OD of inlet | G1/2 |
OD of Outlet | G1/2 |
Power supply | Battery / Electric / Solar panel |
Structure | Single-stage |
| Material | PPS+GF40 |
Customized functions | 1, Dry-running protection 2, Locked-rotor protection |
Remarks | Not self-priming |
