12.5V Engine water pump P9009

Location:

Home › Water pump › Automobile water pump

Products

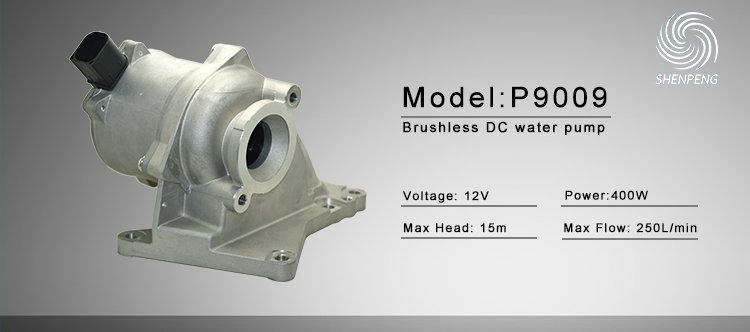

12.5V Engine water pump P9009

Volt:
Head: 15m+
Noise: ≤55dB(A)
Speed control ways: PWM
Protection level:
Function: Lin
Medium temperature: -40-125°C

Remarks:

- We can offer OEM/ODM service.

- If you are interested in our products,pls send your requirements to sp005@dgshenpeng.com

- Our Facebook is：Shenpeng Pump

■ Product application
Engine cooling cycle

■ Product information
   Ambient temperature:-40 to +140℃
   Medium temperature:-40 to +128℃
   Medium:Clear water,antifreeze

   Weight:1.6Kg
   Protection level:IP6K7
   Insulation level:H
   Service life:1500h@140℃

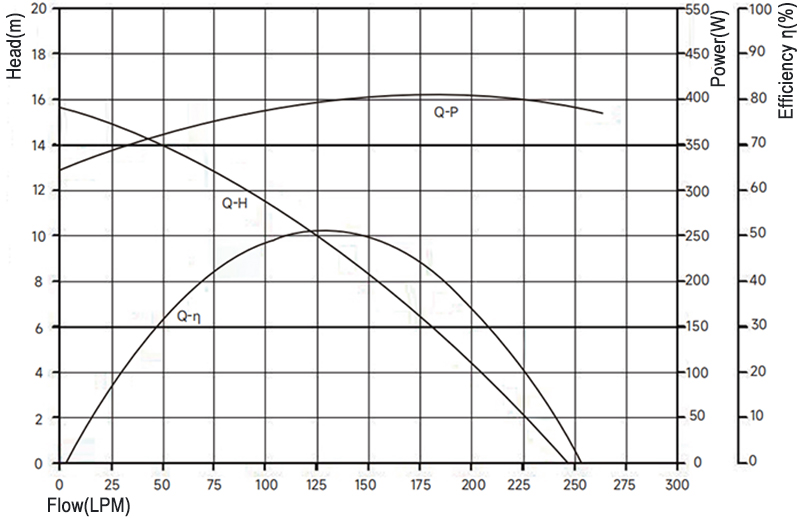

■ Curve

Engine water pump.jpg

Rated Voltage	Voltage Range	Rated Current	Max Head	Max Flow	Rated Poweer	Max Noise
V	V	A	m	L/min	W	dB（A）
12.5	8-16	32	15	230	400	≤55

   ■ FAQ
   ●How long is your delivery time?
     Sample order is 7~10 days.
     Bulk order is 15~20 days.
    If there is pumps in stock, it is 2 days.

   ●How long is your warranty of pump?
     Warranty is 2 years, can be repaired or returned free of charge if non-man-made damage.

   ●What’s the payment method?
     Paypal or T/T，L/C .

   ●What certificates have your pumps passed?
    All our products have passed CE, RoHS, Reach.
    Some pumps met FDA, UL.

■ Specifications

Type	P9009
Rated Voltage	12.5V
Voltage Range	8-16V
Max Flow	230L/min,
Max Lift	15m
Max Noise	55dB
Motor Type	DC Brushless Motor
Food Grade(Y/N)	N
Liquid Temperature	-40 ~ +140℃
Ambient Temperature	-40 ~ +128℃
Pump Theory	Centrifugal Pump
Medium	Water, antifreeze
Protection Level	IP6K7
Using Place	Vehicle
Power Consumption	400W
Service Life	1500h@140℃
OD of inlet	∅39mm
OD of Outlet	∅39mm

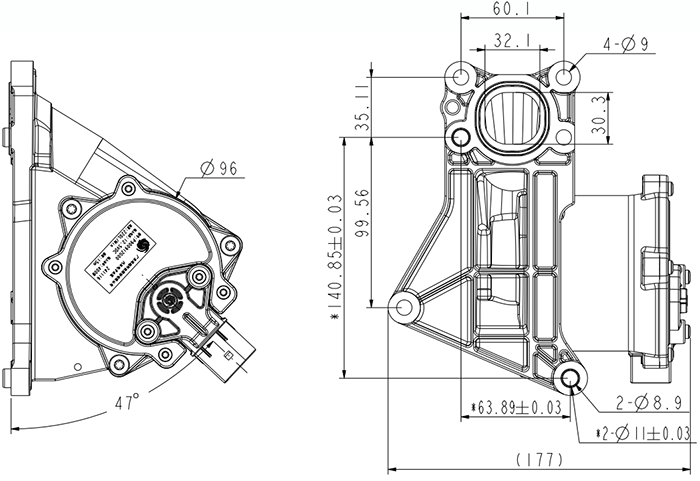

Dimension	139130103mm
Power supply	Battery / Electric / Solar panel
Structure	Single-stage
Material	Al alloy
Customized functions	1, Dry-running protection 2, PWM speed adjustable 3, LIN communication 4, Locked-rotor protection
Remarks	Not self-priming
